Your Professional Press Fit Machine Supplier
Shenzhen Zhizhan Electronics, founded in 1995, is an integrated automation equipment manufacturer specializing in R&D, design, production, sales and service, with multiple product design patents.We focus on Press-fit solder-free technology, providing high-precision insertion, press-fit, 2D/3D visual inspection equipment and complete automation solutions for 5G, automotive electronics, new energy and 3C industries.
-
![Servo Semi-automatic Press-fit Machine]()
Servo Semi-automatic Press-fit MachineModel:CT-1025B/CT-1025E/CT-1025Lview more
Max. force:2.5T(24.5KN)/6T(58.8KN)/12T(117.6KN)
Processing PCB dimensions:300*400mm/680*800mm/680*800mm -
![Offline Automatic Press-fit Machine]()
Offline Automatic Press-fit MachineModel:CT-1050L/CT-1050P/CT-1050Wview more
Max. Force:3T(29.4KN)/5T(49KN)/5T(49KN)
Processing PCB dimensions:750*520mm/750*700mm/1200*800 mm -
![Inline Automatic Press-fit Machine]()
Inline Automatic Press-fit MachineModel:CT-1055/CT-1055Pview more
Max. Force:5T(49KN)/5T(49KN)
Processing PCB dimensions:600*600mm/850*700mm -
![3D Connector PlN Inspection Machine]()
3D Connector PlN Inspection Machine3D Connector Pin Inspection Machine | High-Precision Pin Quality Detection Solutionview more
3D Visual Inspection for Connector Pins – Zero Defect Assurance for PCB Assembly Quality -
![Manual Press-fit Machine]()
Manual Press-fit MachineMax. press force 1 Tview more
Travel of spindle 26 mm (Max)
Moving height of the press head 100-150 mm
Worksheet size 750x830 mm
Depth of device 300 mm
Contour size of the... -

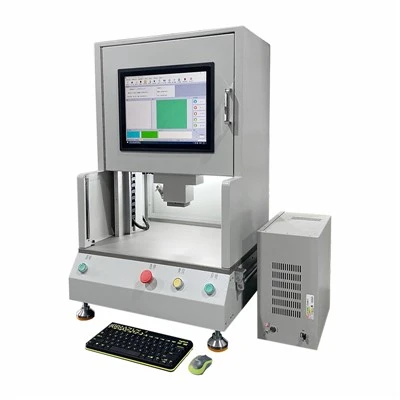

![Desktop Semi-automatic Press-fit Machine]()
Desktop Semi-automatic Press-fit MachineModel CT-1021A CT-1021Pview more
Max. press-fitting pressure 500N 1000N
Position accuracy ±0.02 mm
Worktable size (L x W) 410*420 mm
Power supply AC220V, 550W AC220V,... -
![Pneumatic Semi-automatic Press-fit Machine]()
Pneumatic Semi-automatic Press-fit MachineOperating System Win10view more
Maximum Pressure 25 kN
Press Head Size Max. 150×25 mm
Worktable (mm) 860×750 mm
Power Supply AC 220V/500W
Overall Machine Dimensions... -
![Inline Automatic Press-fit+AOI Inspection Machine]()
Inline Automatic Press-fit+AOI Inspection MachineModel CT-3001view more
Operation system Win11 IPC
Size of worktable (L x W) 300x200mm(Can be customized on request)
Max. press-fitting pressure 3000N(Can be customized on... -
![Offline Dual-platform Auto Press-fit+AOI Inspection Machine]()
Offline Dual-platform Auto Press-fit+AOI Inspection MachineModel CT-1052 CT-1052Sview more
Max. Force 15000N 5000N
Accuracy of position ±0.02mm
Pressure Sensor Accuracy 3‰, Resolution: 0.1N
Motion Mechanism Head X, Z Movement, Platform Y1,... -
![Offline Eyelet Automatic Press-fit+Inspection Machine]()
Offline Eyelet Automatic Press-fit+Inspection MachineModel CT-1051view more
Max. Force 10000N(Customizable)
Press-fit stroke & space Stroke: 100 mm Space: 150 mm
Accuracy of position ±0.01mm, CPK＞1.67
Worktable... -
![Instertion and Press-fit Lntegrated Machine]()
Instertion and Press-fit Lntegrated MachineModel CT-1051view more
Max. Force 10000N(Customizable)
Press-fit stroke & space Stroke: 100 mm Space: 150 mm
Accuracy of position ±0.01mm, CPK＞1.67
Worktable...
Why Choose Us
After-Sales Service
We provide installation, commissioning, disassembly support, and operator training. All machines are covered by a 1-year warranty with 24/7 technical support.
Product Solutions
We use advanced press-fit and solder-free manufacturing technology to improve product durability, stability, and drilling performance.
Certifications
We Certified with ISO 9001 Quality Management System, CE, and RoHS standards to ensure product quality and international compliance.
Global Market Presence
We operate a global service and support network covering China, Asia-Pacific, Europe, the Middle East, and the Americas. This enables us to deliver reliable products, localized technical support, and efficient supply solutions to industrial customers worldwide.
Speed of Installation
Press-fit fittings can be installed up to 60% faster than soldering or threading. There's no need for flame, curing time, or bulky threading equipment; just cut, prep, press, and go.
No Flame or Hot Work
Since press fittings require no heat, they eliminate the fire hazards and permits associated with welding or soldering. This is especially important in hospitals, commercial buildings, or hazardous environments.
Clean and Consistent
Press-fit joints offer clean, uniform connections with less room for human error. The visual indicators built into many fittings help confirm proper insertion depth and seal integrity.
Works in Wet Systems
Press fittings can often be installed without draining the entire system. This makes them ideal for repairs and retrofits on live piping systems.
Compatible with a Wide Range of Materials
Available in copper, stainless, carbon steel, press-fit fittings support a variety of applications — from potable water and gas lines to industrial and HVAC systems.
Components of Press Fit Machine
The Drive System
A pneumatic, hydraulic, or highly precise servo-electric motor that delivers the exact force needed for insertion or crimping.
Force Sensor / Load Cell
Monitors and records the insertion force in real-time, instantly catching defects, misalignment, or improperly sized parts.
Press-In Tooling (Ram / Head)
The physical punch or die set that contacts the component and applies downward pressure.Board/Workpiece Support: A fixture or lower platen that rigidly secures the PCB (or pipe) to prevent structural damage from the applied force.
Controller / HMI
A computer or touchscreen interface used to program press cycle parameters, monitor force feedback, and store quality-control data.
Press-Press Fit Machine inherently reliable and solder-free connectivity solutions ideal for a wide range of applications across a multitude of industries. As the latitude of the press-in zone is bigger than that of the PCB hole, the elastic contraction of two press-fit flexible parts by extrusion makes the press-fit terminal smoothly inserted into the conductive hole of the circuit board, so as to realize the highly reliable electro-mechanical interconnects with low-ohmic resistance between the press-fit connector and the PCB board.
Maintain of Press Fit Machine
Daily Maintenance
Inspect the Jaws: Check the jaw profile for any cracks, burrs, or deformities that could affect the integrity of your crimps.
Clean and Wipe Down: Use a clean rag to wipe down the machine and the jaws, clearing away any metal shavings, dust, or moisture.
Check the Battery: Ensure your battery connections are clean and the battery is fully charged to provide consistent pressure.
Weekly & Routine Upkeep
Lubrication: Apply a light coat of lubricant or a drop of hydraulic oil to the jaw pivot pins and the pressing grooves roughly every 40 to 50 press cycles.
Roller Maintenance: Inspect the rollers of the press tool for wear. Clean them and lightly oil them to ensure smooth, friction-free operation.
As one of the most professional press fit machine manufacturers and suppliers in China, we're featured by quality products and good service. Please feel free to buy customized press fit machine from our factory. For quotation, contact us now.
